BONFIGLIOLI - VF/W_EP SERIES – GEARMOTORS FOR HOSTITLE ENVIRONMENTS

Product code : W VF_EP Series - Bonfiglioli
Price : Contact
View : 293

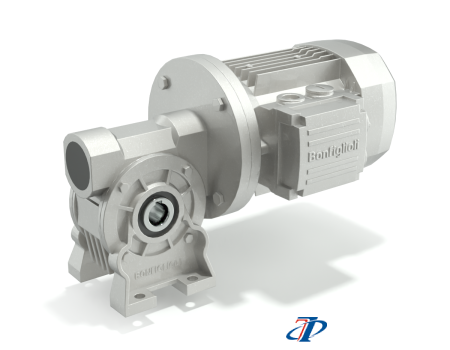

Bonfiglioli worm gear motor is a milestone for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.

Torque Range
13 Nm... 7.100 Nm

Mechanical Rating (n1= 1400 min-1)
0,04 ... 75 kW

Gear ratios
7 ... 10000

Output Configurations
Keyed Hollow Shaft
Plug-in Solid Output Shaft
Torque Limiter as an Option

Input Configurations
VF and W: IEC-normalized motor adapter
VF and W: solid input shaft

Applicable AC motors
VF and W: IEC-normalized motors and brake motors - BN series/BE series
W: integral motors and brake motors series M/ME series
Single and dual speed motors

Main Brake Features
DC and AC supply
Faster Brake Engage/Disengage through Electronically
Controlled AC/DC Rectifier type SB, NBR, SBR (options)

Main Motor Options
Thermistors and Thermostates sensor
Separate Supply Forced Ventilation
Line Driver and Push-Pull Incremental Encoder

Type Torque Nm
VF 27 13
VF 30 24
VF 44 55
VF 49 88
W 63 190
W 75 320
W 86 440
W 110 830
VF 130 1.500
VF 185 3.600
VF 210 5.000
VF 250 7.100
