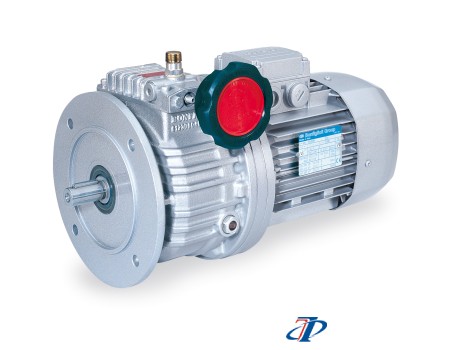

BONFIGLIOLI - V SERIES MECHANICAL SPEED VARIATORS

Product code : V Series Mechanical Speed Variators
Price : Contact
View : 245
BONFIGLIOLI - V SERIES MECHANICAL SPEED VARIATORS Product code: V Series Mechanical Speed Variators Reengineering conventional products to draw the best out of them Product information

BONFIGLIOLI - V SERIES MECHANICAL SPEED VARIATORS

Product code: V Series Mechanical Speed Variators
Reengineering conventional products to draw the best out of them

Product information

TYPE

Power kW

V 0.25

4

V 0.5

8

V 1

16

V 2

35

V 3

56

V 5.5

72

V 10

144


Max. to Min. Speed Setting
5.2 times

Mechanical Rating (n1 = 1400 min-1)
0,18 kW ... 9,2 kW

Additional Helical Reduction
iN = 2,5 ... 6,3

Output Configurations
Foot and Flange mount
Metric or Inch series Solid Output shaft

Compact and IEC Match With Helical and Worm Gear Units

Speed Setting
Manual Through a Handwheel
Remotely Controlled Through a Servo Mechanism
Speed Gauging Kit c/w Display as an Option

Input Configurations
IEC and NEMA motor Adaptors

Applicable AC motors
IEC-normalized Motors and Brake motors - BN series
