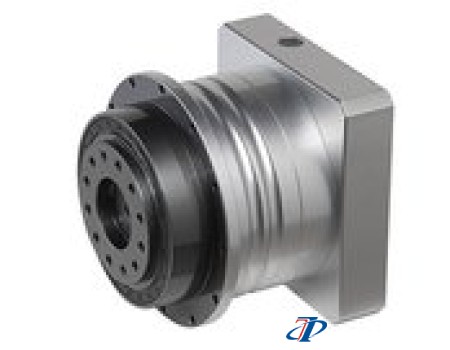

TQF Series (Loại TQF) - Bonfiglioli

Product code : TQF Series (Loại TQF) - Bonfiglioli
Price : Contact
View : 272
TQF feature a higher positioning. This Planetary Gearbox is particularly well suited for high positioning accuracy, dynamic cyclic operations and compact solutions for motion control, automation, and robotic. Highest torsional stiffness, tilting moment and compactness are main characteristic of this excellent product.

Torque range
30 ... 800 Nm

Maximum acceleration torque
45 ... 1200 Nm

Transmission ratios
4 ... 100

Output configuration
Flange mounting

Input configuration
Wide range of coupling configurations to suit most common servomotors

Options
Food grade synthetic lubricant

Maintenance
Lubricated for life

Type Rated torque [Nm] Acceleration torque [Nm]
TQF 060 30 45
TQF 070 70 100
TQF 090 200 300
TQF 130 400 600
TQF 160 800 1200
TQF features two classes of precision, corresponding to the following values of circumferential backlash
1-stage 5’
2-stage 7’
