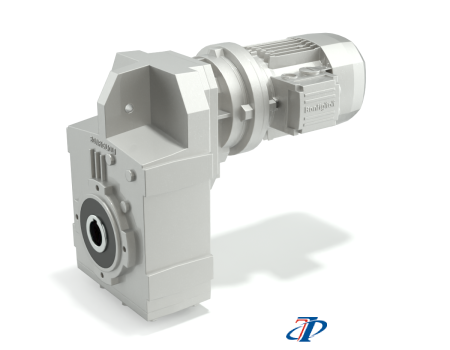

BONFIGLIOLI - F SERIES - SHAFT MOUNTED GEARMOTORS

Product code : F Series (Loại F) - Bonfiglioli
Price : Contact
View : 388
The F Series is an outstanding solution for customers looking for a drive that can maximize mounting flexibility. Thanks to the housing's lateral holes, the F Series can also be side mounted directly into the machine, in addition to all the conventional mounting positions. This gearmotor guarantees elevated efficiency, reliability and low-noise operation. High torque density, a range of wide gear ratios and a compact design complete the F Series' characteristics. The F Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the F Series.
  • Key benefits

    - High mounting flexibility
    - Minimized mounting space
    - Robustness
    - Reduced standard backlash
    - High dynamic and energy saving solution
    - Wide output speed selection range
    - (ATEX) gearbox for explosive environnements 2G/2D

  • Main options

    - Backstop
    - Reduced backlash
    - Lateral holes for side mounting
    - Torque arm (with anti-vibrating bushings)

  • Torque range

    140 ... 14,000 Nm

  • Gear ratios

    6.4 ... 2,099

  • Certifications

    Certificate of compliance
    Inspection certificate
    ATEX

  • Transmissible Mechanical Power

    0.09 ... 123 kW

  • Output

    Keyed hollow shaft - Two dimensions for each size
    Keyless shrink disc fitting
    Plug-in solid output shaft as an option
    Quick fit

  • Motors

    Input with solid shaft
    Input with e-motor coupling:
    - M, ME, MX [compact asynchronous]
    - BMD [servo permanent magnet]
    - BSR [IEC reluctance]
    - BN, BE, BX [IEC asynchronous]
    - BS [IEC single phase]

  • Motor options

    Thermistors and thermostat sensors
    Independent forced cooling
    Incremental, sin/cos absolute single/multi-turn encoders
    Tropicalization
    Anti-condensation heaters
    Backstop
