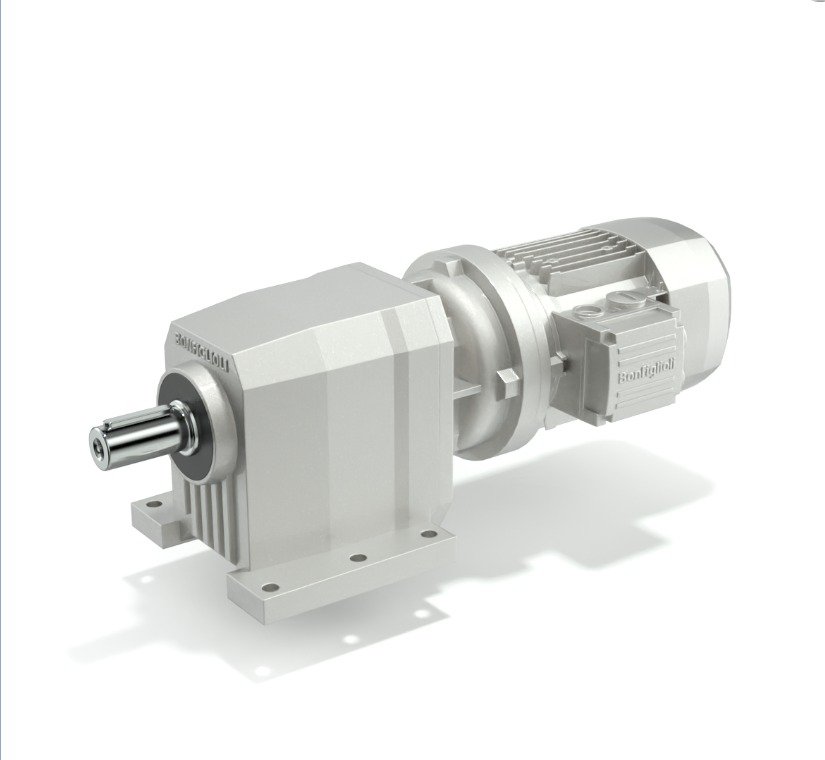

C Series - In-line Gearmotors & Units

Product code : C series (loại C) - Bonfiglioli
Price : Contact
View : 182
The C Series is designed for the requirements of standard tasks in the industrial environment. These series achieve first-rate reliability, efficiency, robustness, and a wide output torque range. The extremely wide range of gear ratios, achieved through 2-, 3- or 4-stage versions, allows the customer to adapt the C Series to every application and to find the perfect match for output speed requirements. The C Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the C Series.
  • Key benefits

    - Minimized mounting space
    - Robustness
    - Reduced standard backlash
    - High dynamic and energy saving solution
    - Wide output speed selection range
    - ATEX gearbox for explosive environments 2G/2D

  • Main options

    Main option
    Surface protection up to C5
    Double oil seals
    Fluor Elastomer Seals
    Reduced Backlash

  • Torque range

    45 ... 12,000 Nm

  • Gear ratios

    2.6 ... 1,481

  • Certifications

    Certificate of compliance
    Inspection certificate
    ATEX

  • Transmissible Mechanical Power

    0.09 ... 213 kW

  • Output

    Feet or flange mounting, B14 flange
    Metric or inch series solid output shaft

  • Motors

    Input with solid shaft
    Input with e-motor coupling:
    - M, ME, MX [compact asynchronous]
    - BMD [servo permanent magnet]
    - BSR [IEC reluctance]
    - BN, BE, BX [IEC asynchronous]
    - BS [IEC single phase]

  • Motor options

    Thermistors and thermostat sensors
    Independent forced cooling
    Incremental, sin/cos absolute single/multi-turn encoders
    Tropicalization
    Anti-condensation heaters
    Backstop
