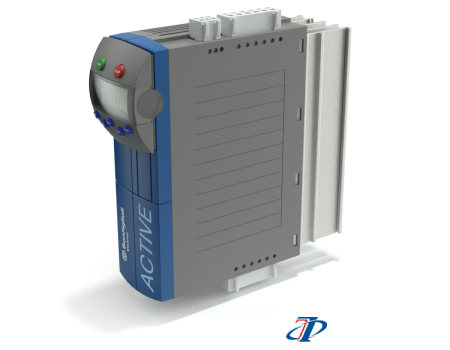

BONFIGLIOLI ​- ACTIVE SERIES SOLUTION DRIVE

Product code : ACTIVE VECTRON Series
Price : Contact
View : 395
BONFIGLIOLI ​- ACTIVE SERIES SOLUTION DRIVE Product code: ACTIVE VECTRON Series Versatility, rating, performances A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.

BONFIGLIOLI ​- ACTIVE SERIES SOLUTION DRIVE

Product code:  ACTIVE VECTRON Series
Versatility, rating, performances

A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.

Product information:

TYPE

Power Kw*

ACT401 – 05

0,55

ACT401 – 07

0,75

ACT401 – 09

1,1

ACT401 – 11

1,5

ACT401 – 12

1,85

ACT401 – 13

2,2

ACT401 – 15

3

ACT401 – 18

4

ACT401 – 19

5,5

ACT401 – 21

7,5

ACT401 – 22

9,2

ACT401 – 23

11

ACT401 – 25

15

ACT401 – 27

18,5

ACT401 – 29

22

ACT401 – 31

30

ACT401 – 33

37

ACT401 – 35

45

ACT401 – 37

55

ACT401 – 39

65

ACT401 – 43

75

ACT401 – 45

90

ACT401 – 47

110

ACT401 – 49

132

ACT201 – 05

0,55

ACT201 – 07

0,75

ACT201 – 09

1,1

ACT201 – 11

1,5

ACT201 – 13

2,2

ACT201 – 15

3

ACT201 – 18

4

ACT201 – 19

5,5

ACT201 – 21

7,5

ACT201 – 22

9,2

*200% overload - 1sec



150% overload - 1min




Power Range (ACT401)
0.55 - 132 kW / three phase 360 - 480V / 50 - 60Hz

Power Range (ACT201)
0.55 - 132 kW / three phase 360 - 480V / 50 - 60Hz

Type of Control
Selectable Vector control function

Sensor-less control, sensor-less field oriented control, field oriented control with encoder.

Overload Capacity
150% for 60s / 200% for 1s

Switching Frequency
2, 4, 8, 12, 16 kHz

Enclosure - Khung vỏ bọc
IP20 (EN 60529)

EMC Filter
Integrated up to 9.2 kW (EN 61800-3)

Main Standard Hardware features
ntegrated dynamic braking module
DC link connection
Standard encoder interface
Motor temperature monitoring
Plug-in power terminals (up to 3kW)
Plug-in and programmable control terminals
6 digital input, 1 multifunction input
1 digital Output, 1 multifunction Output
1 relay output (changeover contact)
Optional Expansion Modules
Expansion of analog, digital inputs and outputs, additional encoder or resolver input, repetition frequency output, System bus (canopen)

Optional Communication Modules
RS232, RS485, Profibus-DP, CANopen, LON

Optional Keypad
Removable keypad KP500 with copy function
Cabinet mounting kit and handheld for keypad

Optional PC Software
VPlus for Windows operating system with set-up, terminal monitor, actual value window, scope function and teleservice

Main Software Features
Programmable reference value channel, Programmable start and stop characteristics, Motor potentiometer, Programmable S curve , 4 data sets, Auto strat-up and commissioning, Auto reset after failure, Auto start after power failure, PL controller, Programmable logic and timer functions, volume floow control, Bump-Less torque/speed changeover, Master / Slave function with electronic gear, Enhanced positioning function, Mechanical brake control free off friction, Index and stability control intelligent current limits, Power failure regulation, Comprehensive monitoring and protection capabilities, High speed control, Function for lift, crane and winch applications, 3 different brake Management Functions.
