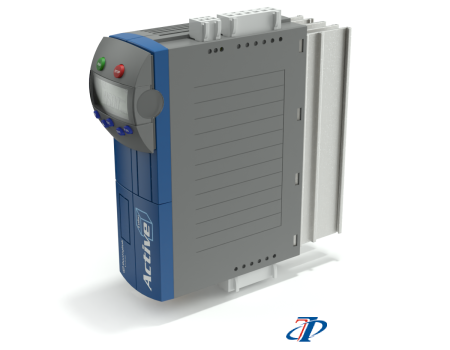

BONFIGLIOLI- ACTIVE CUBE

Product code : ACTIVE CUBE VECTRON
Price : Contact
View : 387
Product code: ACTIVE CUBE VECTRON Solution Servo Drive Versatility, promptness, accuracy A full series of solution & servo drives, compact and flexible, dedicated both to high demanding industrial automation systems and to motion control architectures, in match with Bonfiglioli servomotors.

BONFIGLIOLI- ACTIVE CUBE SOLUTION SERVO DRIVE



Product code: ACTIVE CUBE VECTRON Solution Servo Drive
Versatility, promptness, accuracy

A full series of solution & servo drives, compact and flexible, dedicated both to high demanding industrial automation systems and to motion control architectures, in match with Bonfiglioli servomotors.




the detail information of product

TYPE

Power kW*

ACU401 - 01

0,25

ACU401 - 03

0,37

ACU401 - 05

0,55

ACU401 - 07

0,75

ACU401 - 09

1,1

ACU401 - 11

1,5

ACU401 – 12

1,85

ACU401 – 13

2,2

ACU401 – 15

3,0

ACU401 – 18

4,0

ACU401 – 19

5,5

ACU401 – 21

7,5

ACU401 – 22

9,2

ACU401 – 23

11

ACU401 – 25

15

ACU401 – 27

18,5

ACU401 – 29

22

ACU401 – 31

30

ACU401 – 33

37

ACU401 – 35

45

ACU401 – 37

55

ACU401 – 39

65

ACU401 – 43

75

ACU401 – 45

90

ACU401 – 47

110

ACU401 – 49

132

ACU201 – 01

0,25

ACU201 – 03

0,37

ACU201 – 05

0,55

ACU201 – 07

0,75

ACU201 – 09

1,1

ACU201 – 11

1,5

ACU201 – 13

2,2

ACU201 – 15

3,0

ACU201 – 18

4,0

ACU201 – 19

5,5

ACU201 – 21

7,5

ACU201 – 22

9,2

*200% overload - 1sec



150% overload - 1min




Power Range (ACU401)
0.25 - 132 kW / three-phase 360 V - 480 V / 50 Hz - 60Hz (± 10%)

Power Range (ACU201)
0.25 - 9.2 kW / single or three-phase 200 V - 240V / 50Hz - 60Hz (± 10%)

Type of Control
Selectable Vector control function:
Sensor-less control, sensor-less fieldoriented control, field oriented control with speed sensor, field oriented control of synchronous servomotors with speed/position sensor encoder.

Overload Capacity
150% for 60s / 200% for 1s

Switching Frequency
2, 4, 8, 12, 16 kHz

Enclosure
IP20 (EN 60529)

EMC Filter
Integrated up to 9.2 kW (EN 61800-3)

Main Standard Hardware features
Integrated safe torque off function, External 24Vdc supply for control board and electronics, Integrated dynamic braking module, DC link connection, Standard encoders interface, Resolver module for feedback acquisition from Bonfiglioli servomotors, Motor temperature monitoring, Plug-in power terminals (up to 3kW), Plug-in and programmable control terminals 6 digital input, 1 multifunction input, 1 digital output, 1 multifunction Output, 1 relay output (changeover contact).


Optional Expansion Modules
Expansion of analog, digital inputs and outputs, additional encoder or resolver input, repetition frequency output, System bus (canopen)
Optional Communication Modules
RS232, RS485, Modbus, Profibus-DP, CANopen

Optional Keypad
Removable keypad KP500 with copy function
Cabinet mounting kit and handheld for keypad

PC Software VPlus
Windows-based engineering "workbench" with easy interface, Drive parameters set-up, Terminal monitor, Actual value window, Scope function, Bonfiglioli servomotors quick-configuration window, Motion block parameters management, Teleservice.

Main Software Features
32 Programmable Motion blocks, 36 Homing functions according to CANopen DSP4.02, Unit converter, Jog function, Absolute and relative positioning modes, Touch probe, Teach-In functions, Rotary table control, Programmable reference value channel, Programmable start and stop characteristics, Motor potentiometer, Programmable S curve, 4 data sets, Auto start-up and commissioning, Auto reset after failure, Auto start after power failure, PI controller, Programmable logic and timer functions, Bumpless torque / speed changeover, Master / Slave function with electronic gear, Index and stability control, Intelligent current limits, Power failure regulation, Comprehensive monitoring and protection capabilities, High speed control, Function for lift, crane and winch applications, 3 different brake Management Functions. Advanced application functions: advanced brake release control, spindle control up to 1000Hz, traverse function for winders, Volume flow control, load evaluation.
